Column：Work lights

Rated voltage：21.6V
Rated power：35W
Rated Capacity：13Ah
Protection level：IP65 (lamp holder)/IP54 (box)
Dimensions：Shrinkage: Ф 510x290x220mm  Rising: Ф 510x290x1500mm
Product weight：8kg

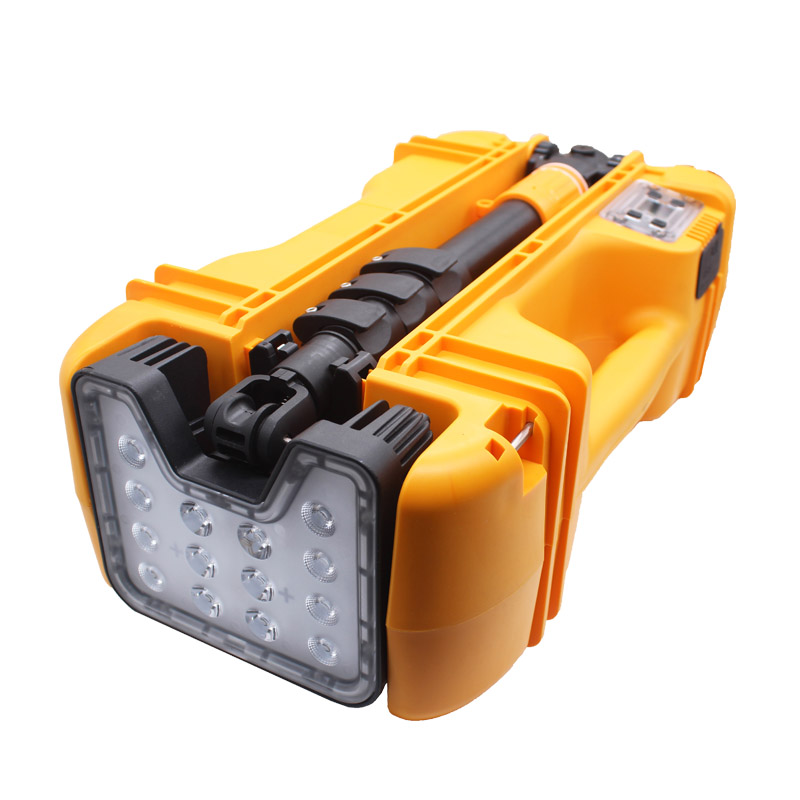

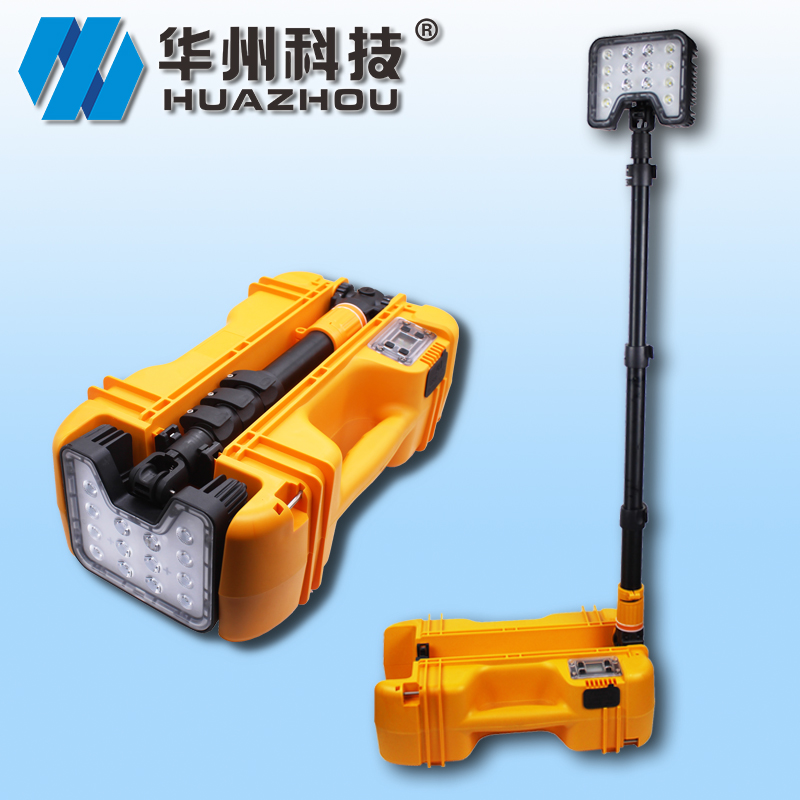

Product description：HZ6116 LED portable mobile light with adjustable spotlight and floodlight, red and yellow alternate warning light on the back of the lamp cap, LCD power display, suitable for large-scale mobile lighting and accidents in explosion-proof areas of petroleum, petrochemical, shipbuilding, electric power, metallurgy, industrial and mining industries Emergency repair, outdoor construction lighting.

Product application

It is applicable to small-scale maintenance and construction lighting in Railway Engineering, electricity, power supply and transportation, and colleagues are also suitable for small-scale emergency lighting in power grid, public consumption and other industries.

Performance characteristics

Light and durable: light weight and small size lamp can be carried by hand and back. The lamp can also be installed with rail wheel, which is convenient for users to move on the single rail of railway;

Scientific light distribution: the lamp head assembly is composed of some components such as light distribution lens, heat dissipation shell and light source board. The light source board adopts high light efficiency LED light source, with high lighting brightness, large coverage and long service life;

Lifting performance: the lamp adopts four expansion bars with adjustable height to adjust the height of lamp head. The maximum rising height is 1.5m, and the lamp head can rotate horizontally at a certain angle (0-340 °) in the horizontal direction, or turn vertically at a certain angle (0-160) in the vertical direction to meet the requirements of different angles of the user;

Safety and reliability: lamps are made of various high-quality materials, compact structure, stable quality, reliable performance, and can work normally in harsh environment and climate conditions.

Long life: high capacity high-energy lithium battery is adopted, with large capacity and low self discharge rate. It can meet the lighting needs of 8 hours after full charge. It has the function of preventing battery over discharge and short circuit, and it is safe and reliable to use;

Function diversity: lamps and lanterns have various functions and are more humanized. Collect the functions of spotlight / floodlight lighting, power display, non-polar dimming, signal warning, etc., and use standard USB charging interface to meet the needs of users in different environments, which can charge most digital products such as mobile phones, etc., to solve the problem that the users can not use when they are working outdoors;

Convenient charging: it can be charged by the lithium battery charger (input AC220V and output dc21.6v/2.8a) lamps provided by the lamp, which can meet the long-term lighting requirements.

Product technical parameters rated voltage dc21.6 battery rated capacity battery service life about 1000 (cycles) rated power ed light source spotlight + floodlight 2625 luminous flux spotlight 1644 floodlight source spotlight + floodlight Lu x illuminance value (2m) spotlight Lu x floodlight endurance continuous lighting h average service life h100000 charging time h protection grade lamp cap p65 box | P54 product size rising state 510 × 290 × 1500 receive 510 × 290 × 220 product weight kg ≤ 8
